Tekin RS Pro 1160 Black Edition BL Sensored/Sensorless Brushless ESC

Product Description

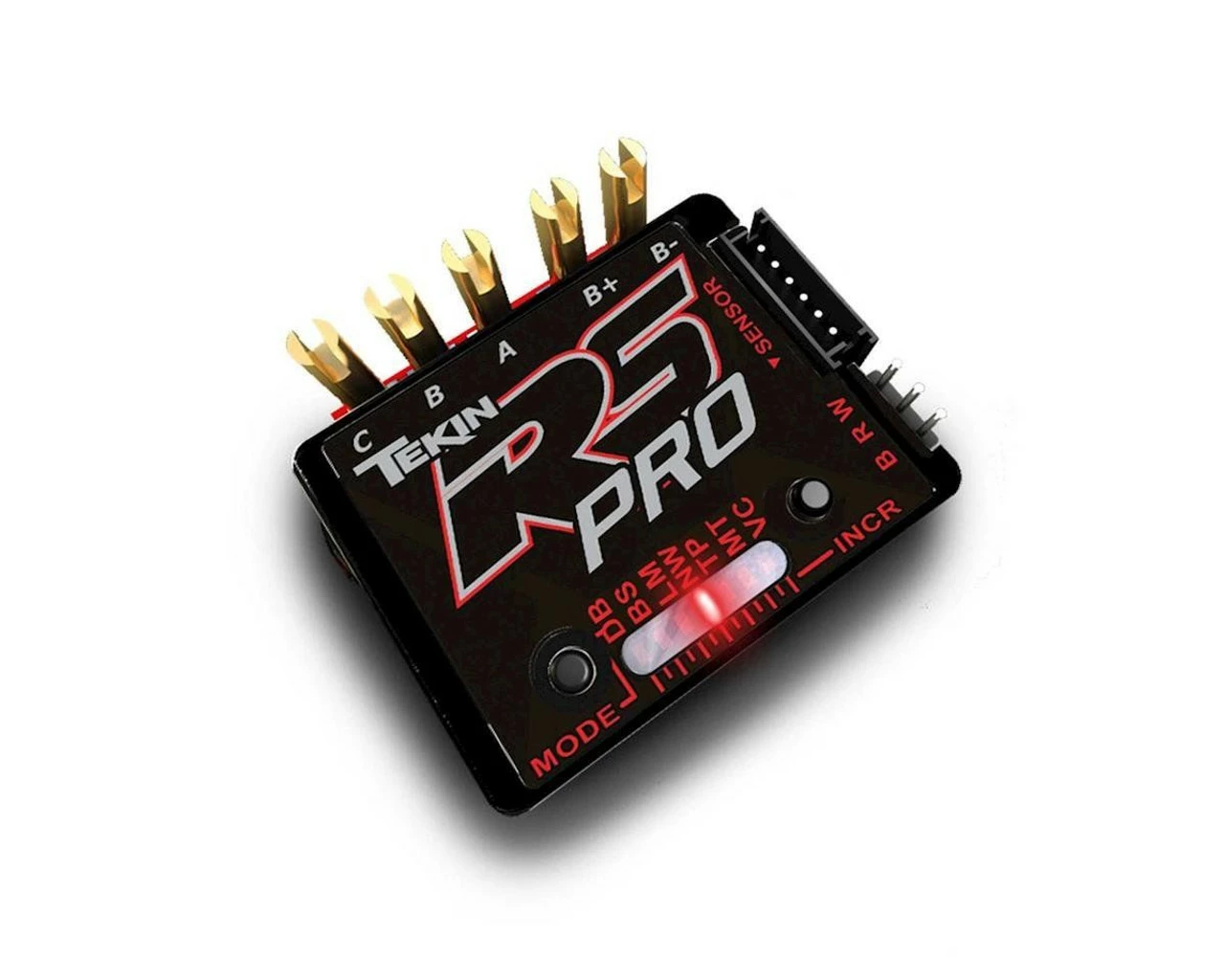

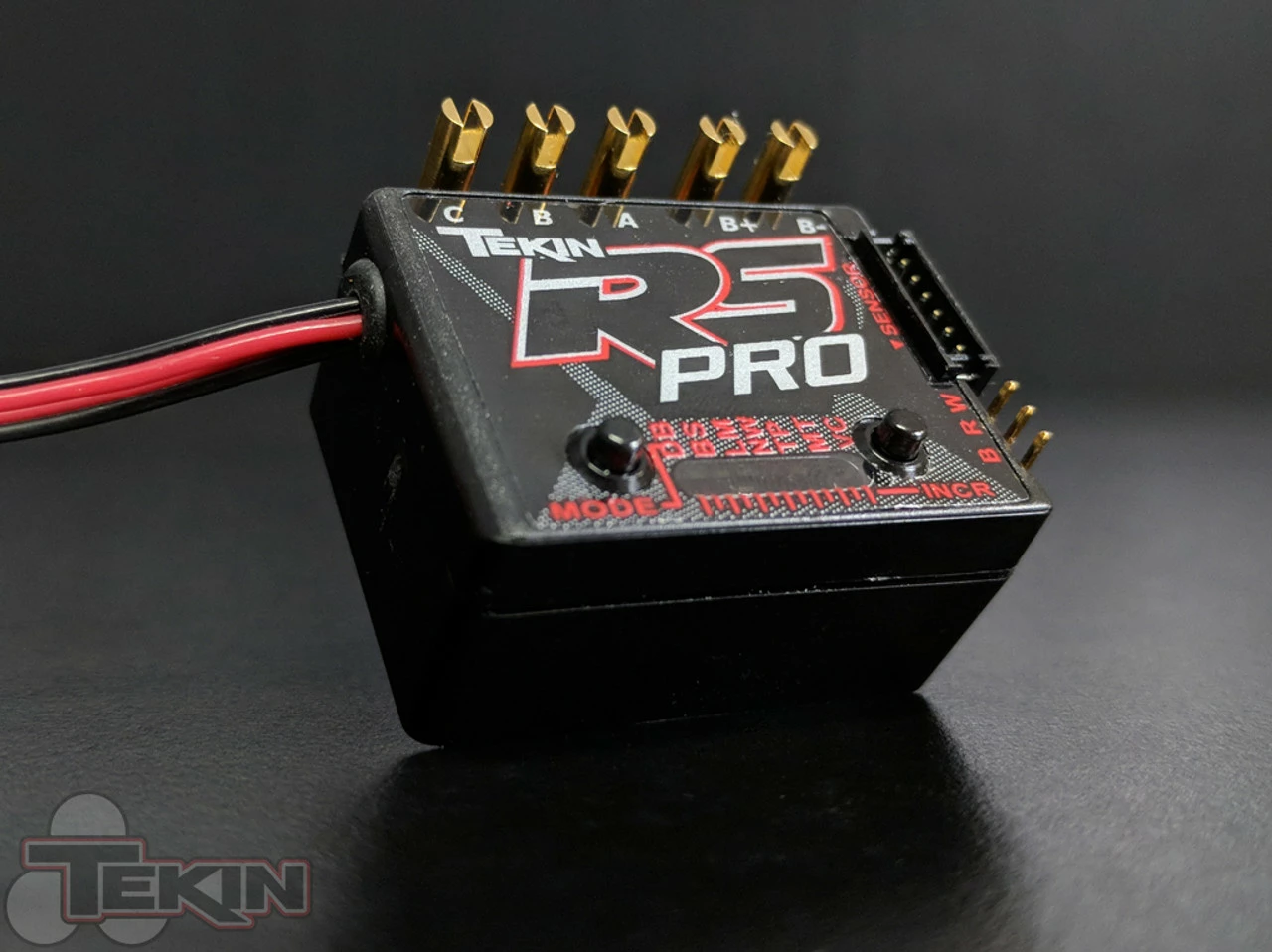

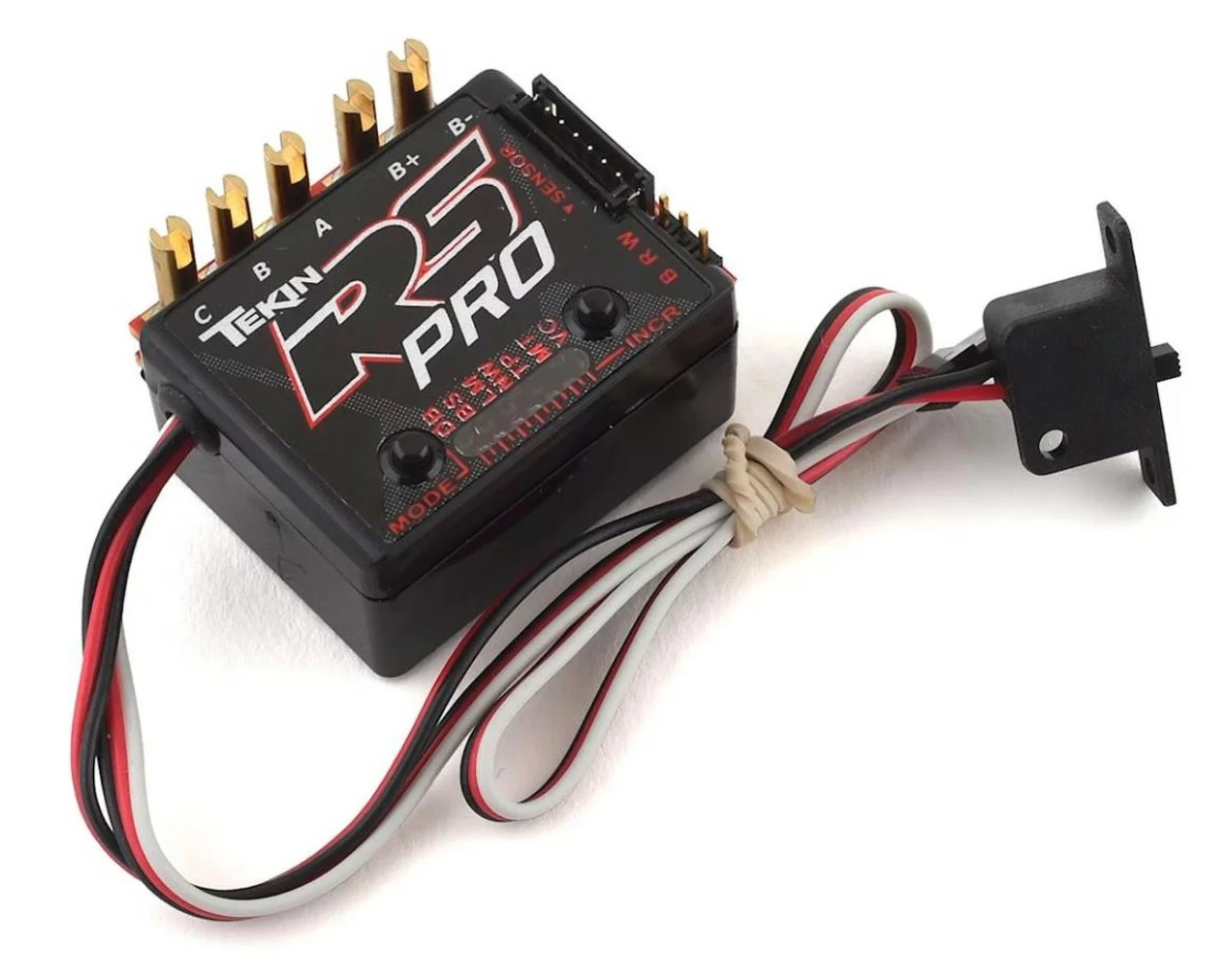

Tekin RS Pro 1160 Black Edition BL Sensored/Sensorless Brushless ESC

The Tekin RS PRO Black Edition utilizes both hardware and software advances recently developed for Tekins latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance.

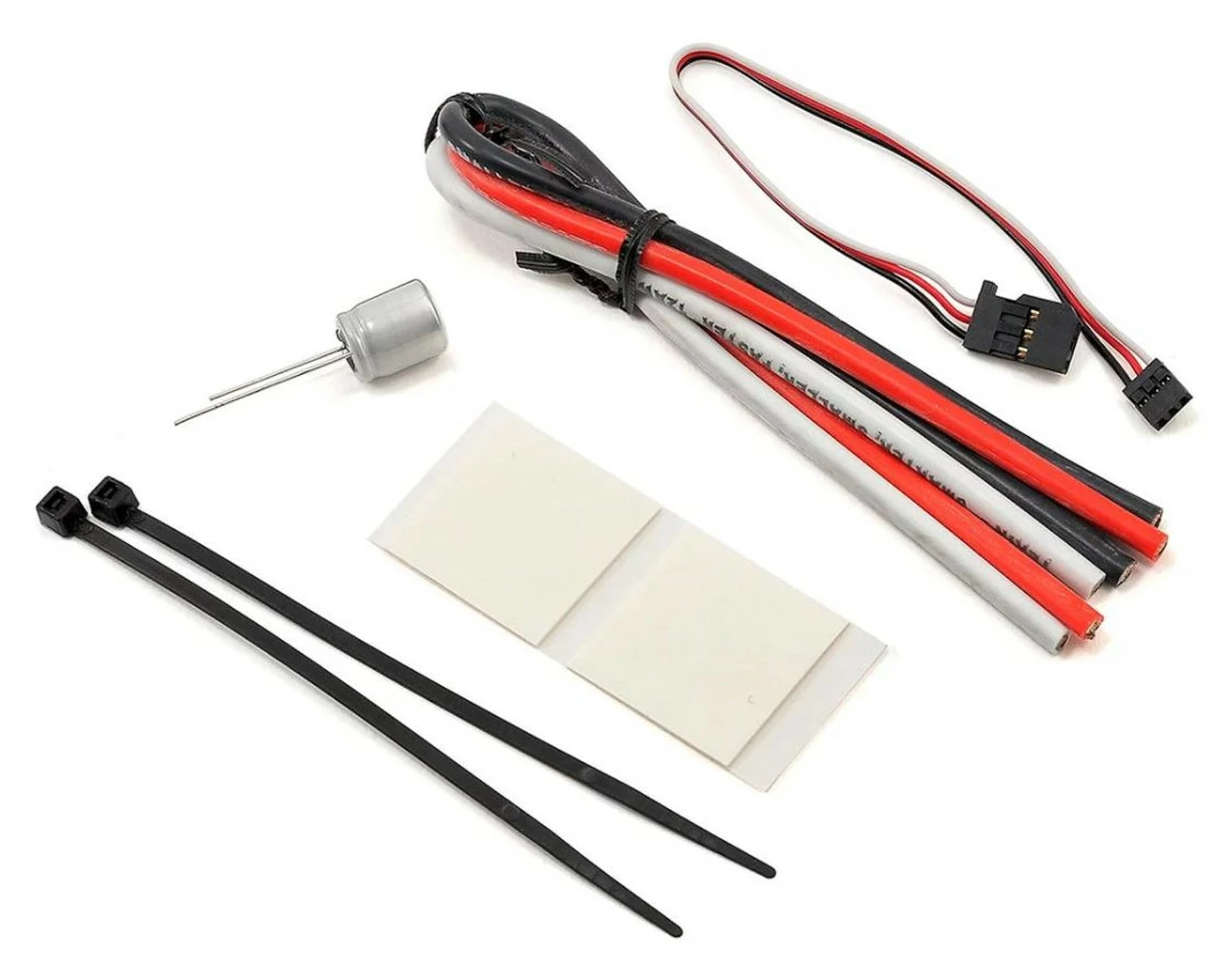

The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.

Note: For 1:10 scale Modified 2WD/4WD Buggy and Stadium Truck and Modified Touring Car Tekin recommends the RSX Modified ESC as these setups tend to run at higher temperatures.

Features:

• ULR: Ultra Low Resistance Design
• Specifically Designed for Spec & Stock Racing
• QuickTune™ One Touch Programming
• Adjustable Throttle and Brake Frequencies *
• High Voltage Programmable BEC *
• HotWire™ Programming Port *
• Data Logging Capability *
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• Lightweight Chassis Design
• HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

* Requires HotWire™ sold separately

Specifications:
Controls: Forward/Brake/Reverse
Input Voltage RS Pro : 1-3S LiPo / 4-9S NiMH-NiCD
Motor Limit Brushless Mode 2S: 36mm Can – 2-Pole
Motor Limit Brushless Mode 3S: 36mm Can – 2-Pole
Motor Limit Brushed 2S: 36mm Can – 540 & 550
Motor Limit Brushed 3S: 36mm Can – 540 & 550
Amperage: 480Amps per phase*
ON Resistance: .000096ohm*
BEC: 6.0 / 7.4V @ 5.5amps
Weight: 1.23oz / 35g
Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm

*Per Manufacturer Spec

• Resources

  • Tekin RS Pro Black Edition Manual

Other Details

Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
