Product Description

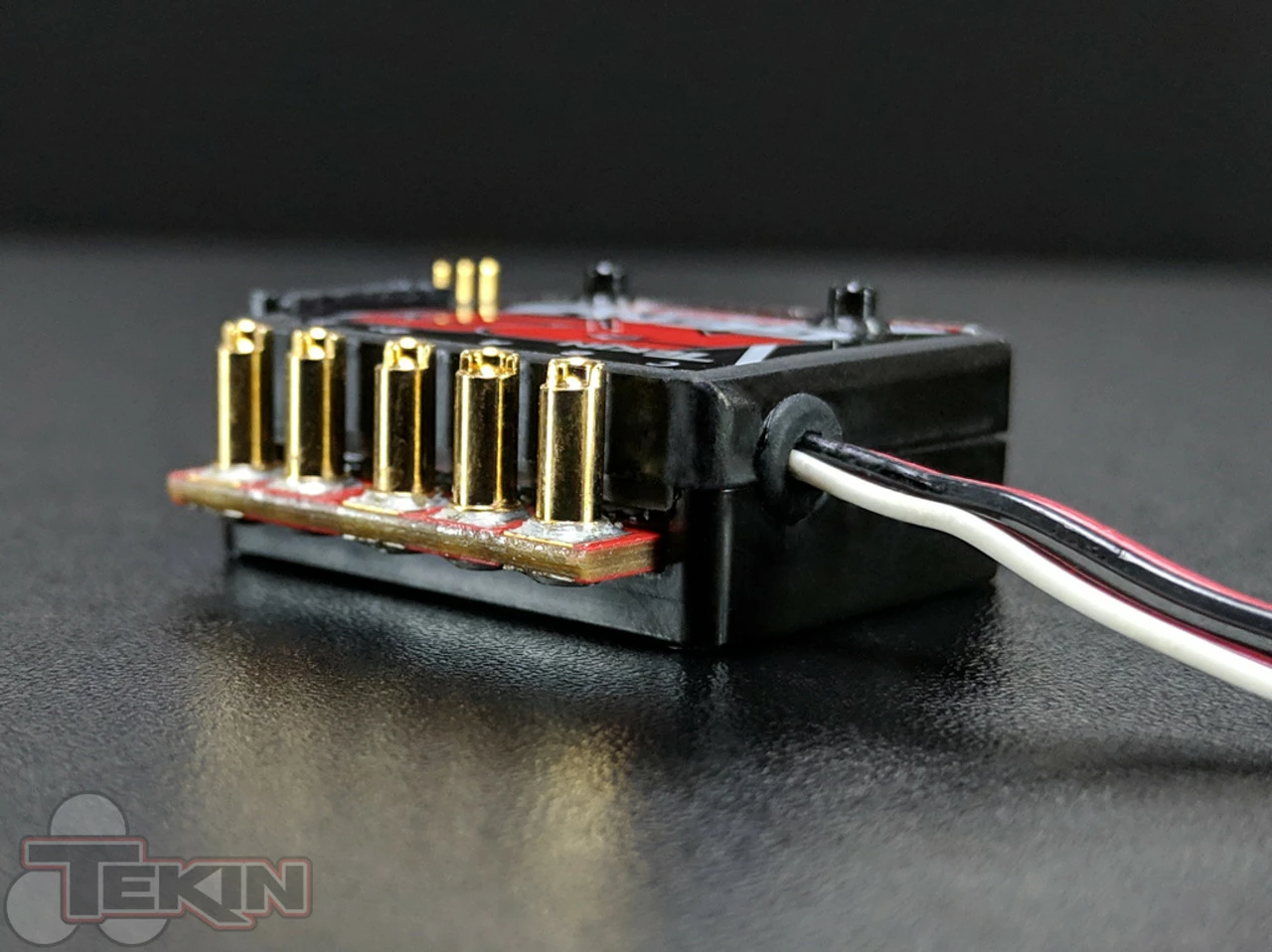

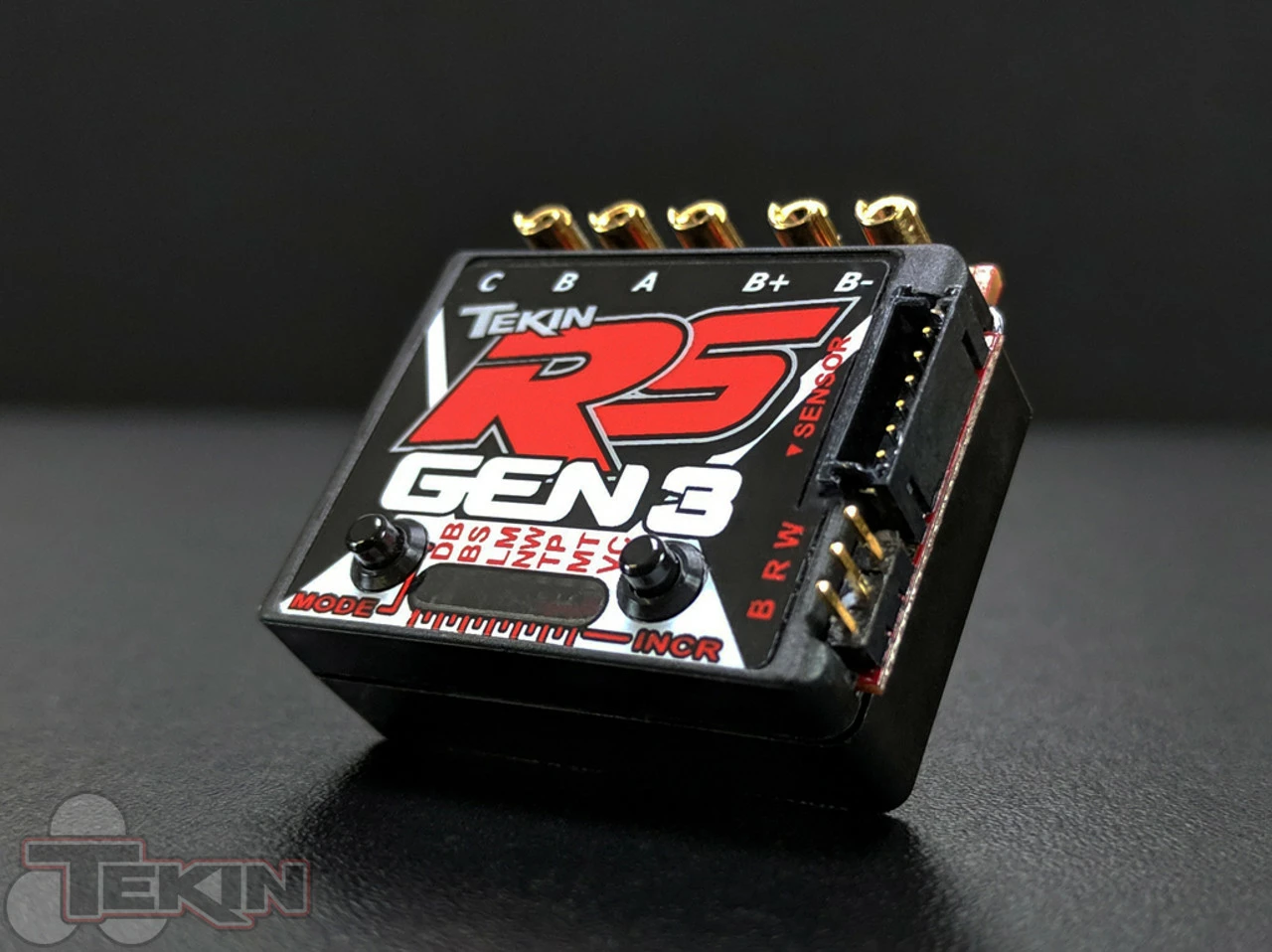

Tekin RS 1156 Gen3 Sensored Brushless ESC
The Tekin RS Gen3 Sensored Brushless ESC brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjust-ability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!
Â
Features:
- QuickTuneâ„¢ One Touch Programming
- New HD Solder Post Design
- 3rd Channel Input for On-The-Fly Drag Brake Adjustments
- Adjustable Torque Control *
- Adjustable Throttle and Brake Frequencies *
- High Voltage Programmable BEC *
- HotWireâ„¢ Programming Port *
- Data Logging Capability *
- Sensor Checker
- On-Board Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- Brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs
- Sensor Plug for Precise Commutation
- Lightweight Chassis Design
- HDAC: High Density Copper PCB’s
- Ultra-smooth and Precise Throttle and Braking Control
*Note:Â Requires HotWireâ„¢ sold separately.
Specifications:
Controls:Â Forward/Brake/Reverse
Input Voltage:Â 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit Brushless Mode:Â 2S – 8.5T 2-pole 36mm Can, 3S – 10.5T 2-pole 36mm Can
Motor Limit Brushed Mode:Â 2S – 10T 36mm Can, 3S – 20T 36mm Can
Max Current:Â 140amps per phase*
BEC:Â 6.0v / 7.4v @ 5.5amps
Dimensions:Â 1.0 x 1.3 x .51″ / 24.5 x 34 x 12.9mm
Weight:Â .83oz / 23.5g
Controls:Â Forward/Brake/Reverse
Input Voltage:Â 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit Brushless Mode:Â 2S – 8.5T 2-pole 36mm Can, 3S – 10.5T 2-pole 36mm Can
Motor Limit Brushed Mode:Â 2S – 10T 36mm Can, 3S – 20T 36mm Can
Max Current:Â 140amps per phase*
BEC:Â 6.0v / 7.4v @ 5.5amps
Dimensions:Â 1.0 x 1.3 x .51″ / 24.5 x 34 x 12.9mm
Weight:Â .83oz / 23.5g
Other Details
Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing! Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer. Verify vehicle fit-ment before purchase. Any and all warranty claims will be handled through the manufacturer directly.
