Tamiya Honda NSX Kit – TT02 Chassis

Product Description

Tamiya Honda NSX Kit – TT02 Chassis

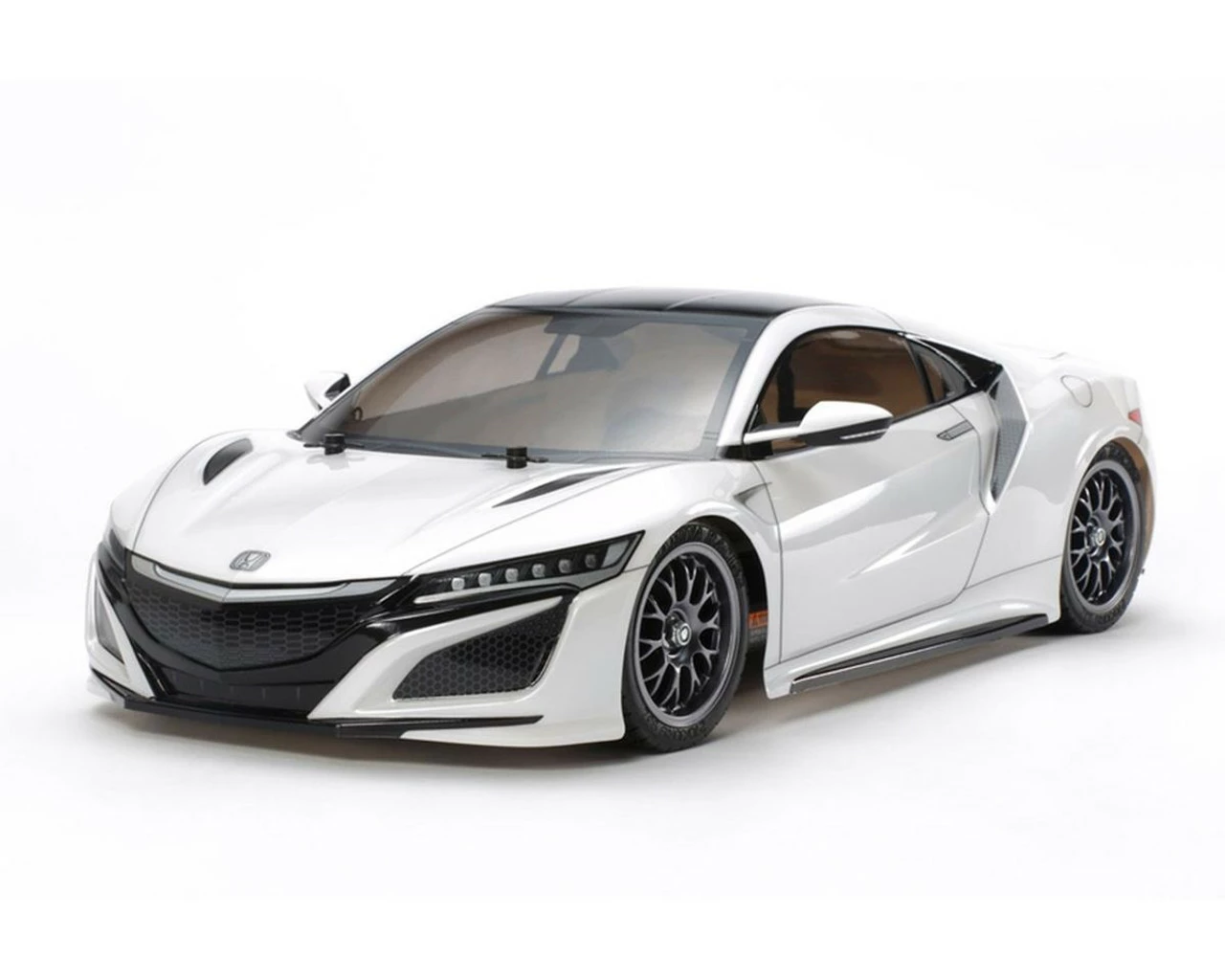

The Tamiya NSX 1/10 4WD Electric Touring Car Kit is a replica of the Acura NSX super sports car. The included polycarbonate body is lightweight and durable, and captures the aerodynamically-styled NSX silhouette with aplomb. Stickers are included to recreate markings on the car, including the distinctive “Jewel Eye” 6-lamp headlights, window frames and air intake mesh. The model runs on the adaptable TT-02 chassis, a beginner friendly unit with tuning potential!

TT-02 Chassis
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color mesh wheels are paired with radial tires.

NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.

Features:

• Bathtub-type Chassis
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• 540 Motor Included
• Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)

Specifications:
Length: 438mm
Width: 190mm
Height: 124mm
Wheelbase: 257mm
Tire Width/Diameter: 27/67mm (Front & Rear)
Gear Ratio: 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)

Needed to Complete:
2 channel radio system
Steering servo
Polycarbonate paint for body
7.2V – 7.4V Battery w/Tamiya Connector (Must use round type battery pack. Square shaped batteries will not fit battery compartment.)
Compatible Battery Charger

Includes:
(1) Tamiya NSX TT-02 Chassis Kit
(1) Hobbywing 1060 Brushed ESC
(1) 540 Size Brushed Motor
Manual

• Resources

  • TAM58634-60A Tamiya TT-02 Chassis Manual
