Product Description
Features:
- Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
- Integrated Microship Stores Unique Parameters for Each Battery
- IC3 and IC5 Connectors are Compatible with EC3 and EC5
- Save Time and Hassle, while Improving Battery Life
- Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
- Recognizes unique Smart battery data for safe, easy charging
- Can also be used to charge batteries without Smart technology
- 50 watts of charging power, up to 5 amps of charge current
- Compact, easily portable design
- One-button interface and simple to understand charging indicator
- Adaptable for AC power input (includes AC to 20V DC power supply)
- Quiet internal cooling fan maintains a safe, efficient operating temperature
- Supports charging LiPo, Lilon, LiHV, and NiMH battery types
- Accepts future Smart technology updates
Specifications:
- Type: Smart LiPo
- Capacity: 2200 mAh
- Voltage: 11.1V
- Connector Type: IC3
- Cell Size: 3.7V
- Number of Cells: 3
- Weight: 0.40 lbs. (180g)
- Dimensions (WxLxH): 4.2 x 1.3 x 0.9 in. (107 x 34 x 24mm)
- Application: Aircraft
- Maximum Continuous Discharge: 30C
- Amp Meter: No
- Application: Battery Charger for Electric Powered RC Vehicles and Aircraft
- Battery Balance Connector: JST-XH
- Battery Temperature Monitoring: No
- Battery Type: LiPo (3.7V per cell)
- Connector Type: IC3
- Cooling Method: Fan
- Discharge: Yes
- Input Voltage: 100-240V AC
- Integrated Balancing: Yes – Internal Balancer & Internal Adapter
- Low Input Voltage Protection: Yes
- Maximum Charge Rate: 17.4V, 5A, 50W
- Normal/Standard Charge Current: 1.0 – 5.0A
- Number of Cells: 2-4S LiPo, LiFe LiHV, LiFe, 2-12 cell NiMH
- Output: 5A
- Output Connector: IC3 (compatible with EC3)
- Over Current Protection: Yes
- Peak Detection: Yes
- Product Height: 1.12″ (28.5mm)
- Product Length: 2.5″ (65mm)
- Product Weight: 2.2oz (63g)
- Product Width: 1.9″ (49mm)
- Programmable: No
- Reverse Polarity Protection: Yes
- Safety Timer: Yes
- Search Keywords: smartspmx_charger
- Selectable Charge Rate: Yes
- Shape: Rectangular
- Short Circuit Protection: Yes
- Technology: Smart
- Thermal Protection: Yes
- Voltage Meter: No

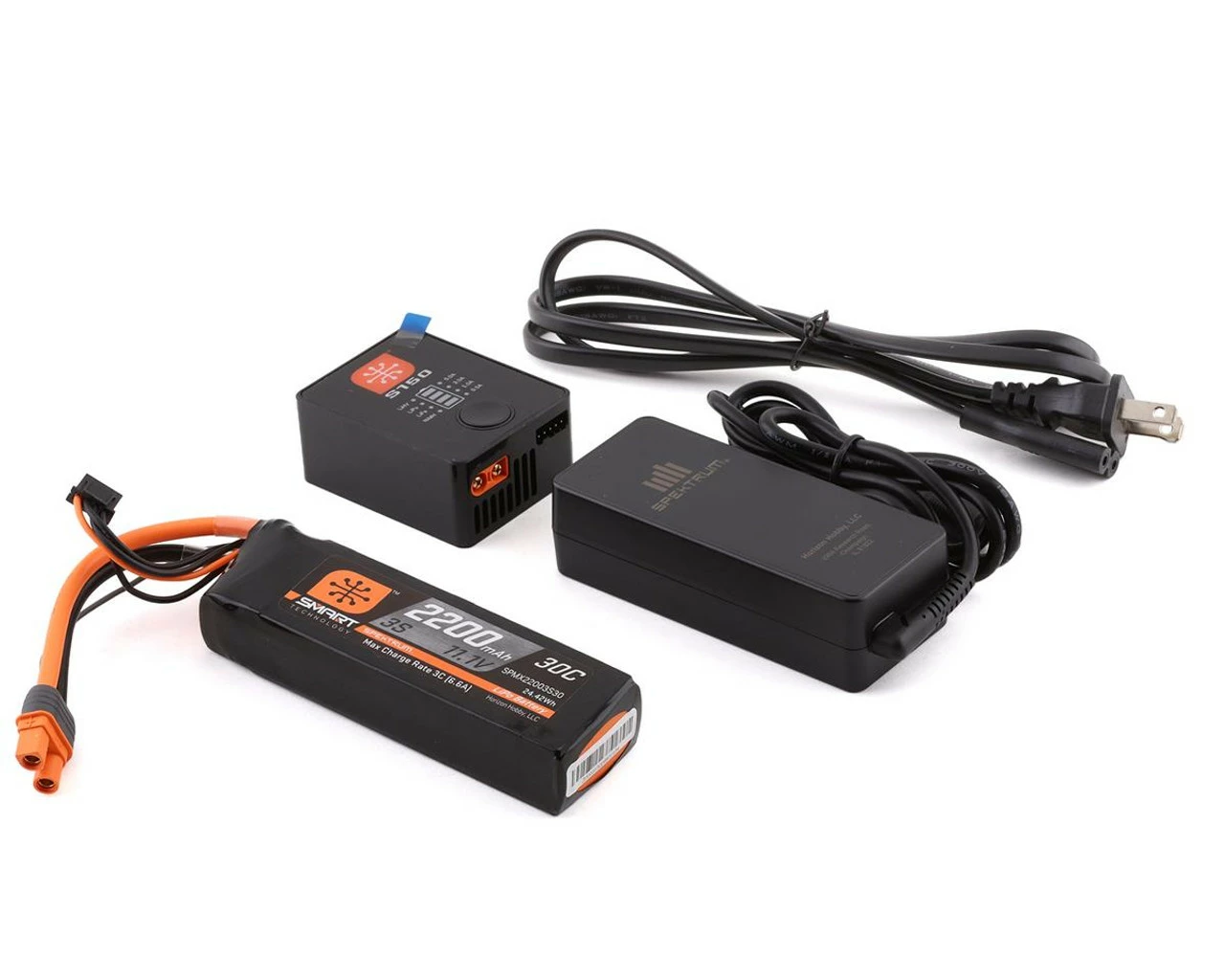

Includes:
- (1) Battery
- (1) Charger
Other Details
Vehicle models vary. We DO NOT guarantee this will fit the vehicle specified in this listing!
Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer.
Verify vehicle fit-ment before purchase.
Returns will only be accepted on items that are returned in new, factory-sealed packaging. Used, damaged (unless damaged when it arrived to you), and opened items will not receive a full refund. Any and all warranty claims will be handled through the manufacturer directly.
