Castle Creations 1/10 Sensored Water Proof SV3 Sidewinder ESC W/ 6900kv Motor Combo

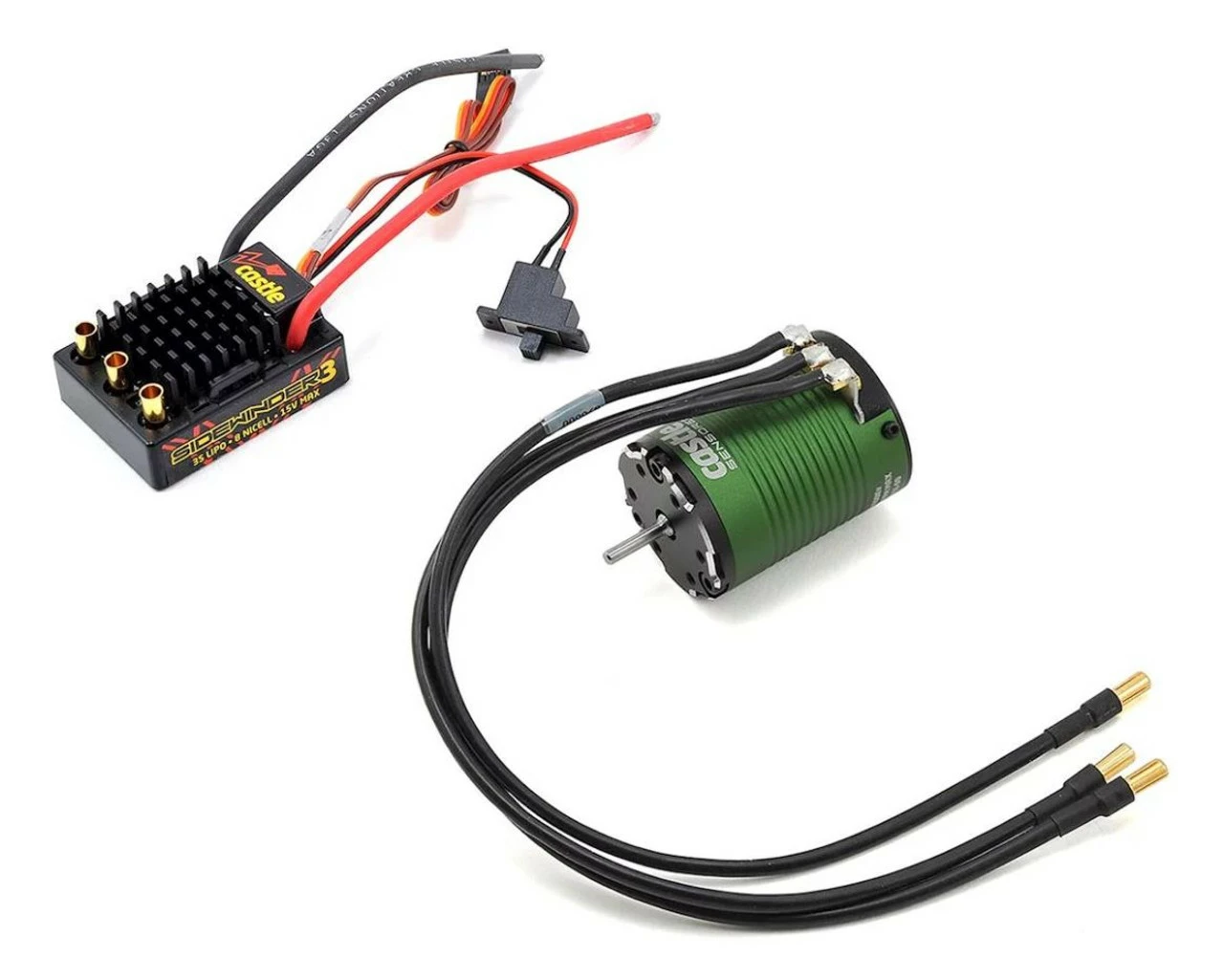

This is the Sidewinder 3 Electronic Speed Control and NC1406-6900kv Brushless Motor from Castle Creations.

Features:
USB programming capability using the Castle Link USB adapter (sold separately)
Waterproof design allows running in nearly any environment (see COMMENTS below)
Solder posts allow battery wire length and direction to be easily changed
Recommended for all 1/10 scale buggy and truggy applications that weigh less than 5lbs

Specifications:

ESC;
Input Voltage: 2S LiPo, 7 cell NiCd/NiMH
Brake: Proportional
Reversible: Yes, with lockout
Dimensions: 1.93 x 1.48 x 0.79″ (49 x 38 x 20mm)
Weight: 1.96 oz (55.5 g) with 5″ (127mm) long battery wires and no battery connector

Motor;
KV Rating: 6900
Can Length: 1.9″ (49mm)
Can Diameter: 1.4″ (36mm)
Shaft Diameter: 1/8″ (3.2mm)
Weight: 5.9 oz (169.5 g)
Connector: 4mm gold
Wire Length: 9.5″ (241mm)

Note:

*Not intended for use while submerged in liquid. If operated in wet conditions, rinse with fresh water to remove dirt or corrosives then fully dry unit.

Warranty Information:

http://www.castlecreations.com/repairs



1/10 scale buggy and truggy applications that weigh less than 5lbs
