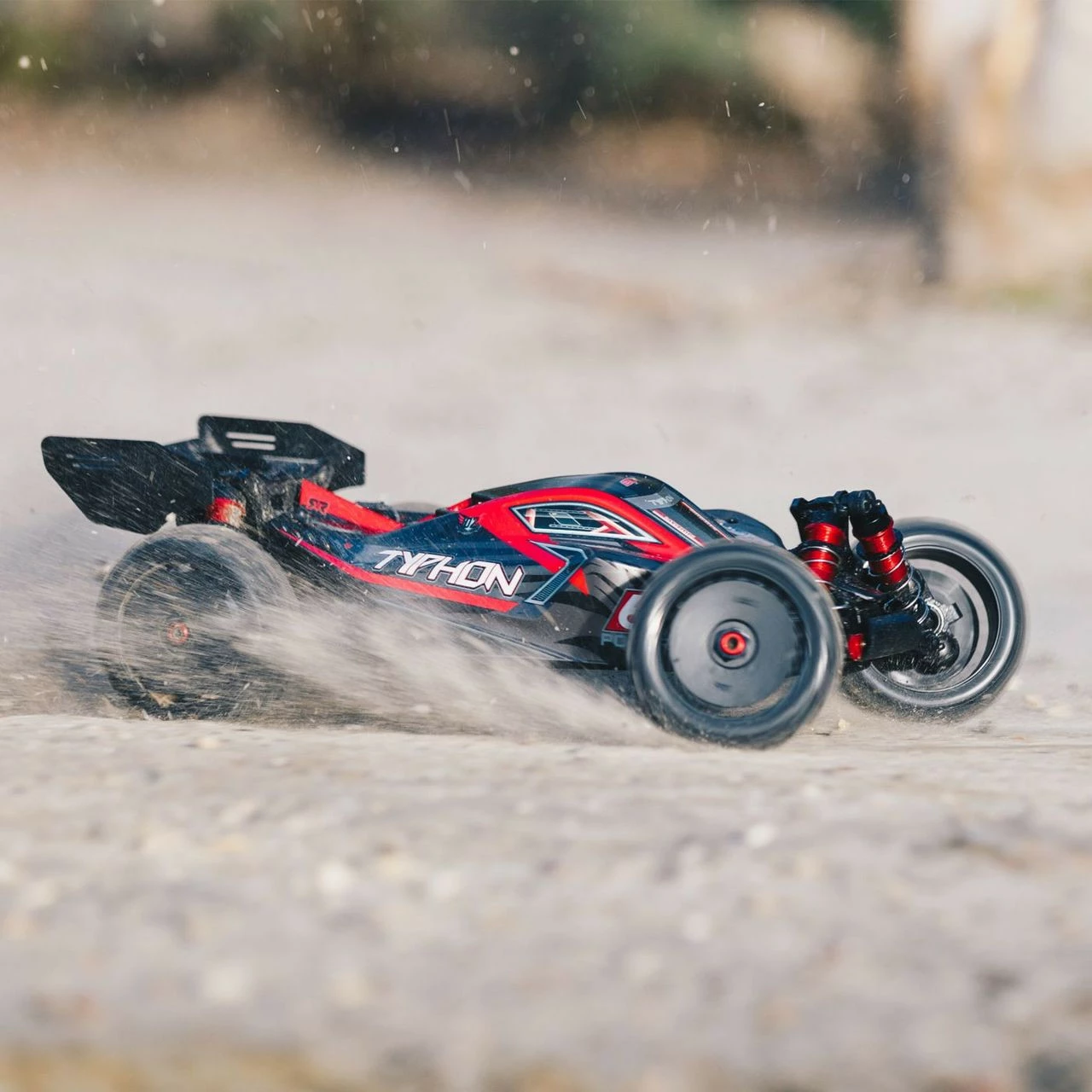

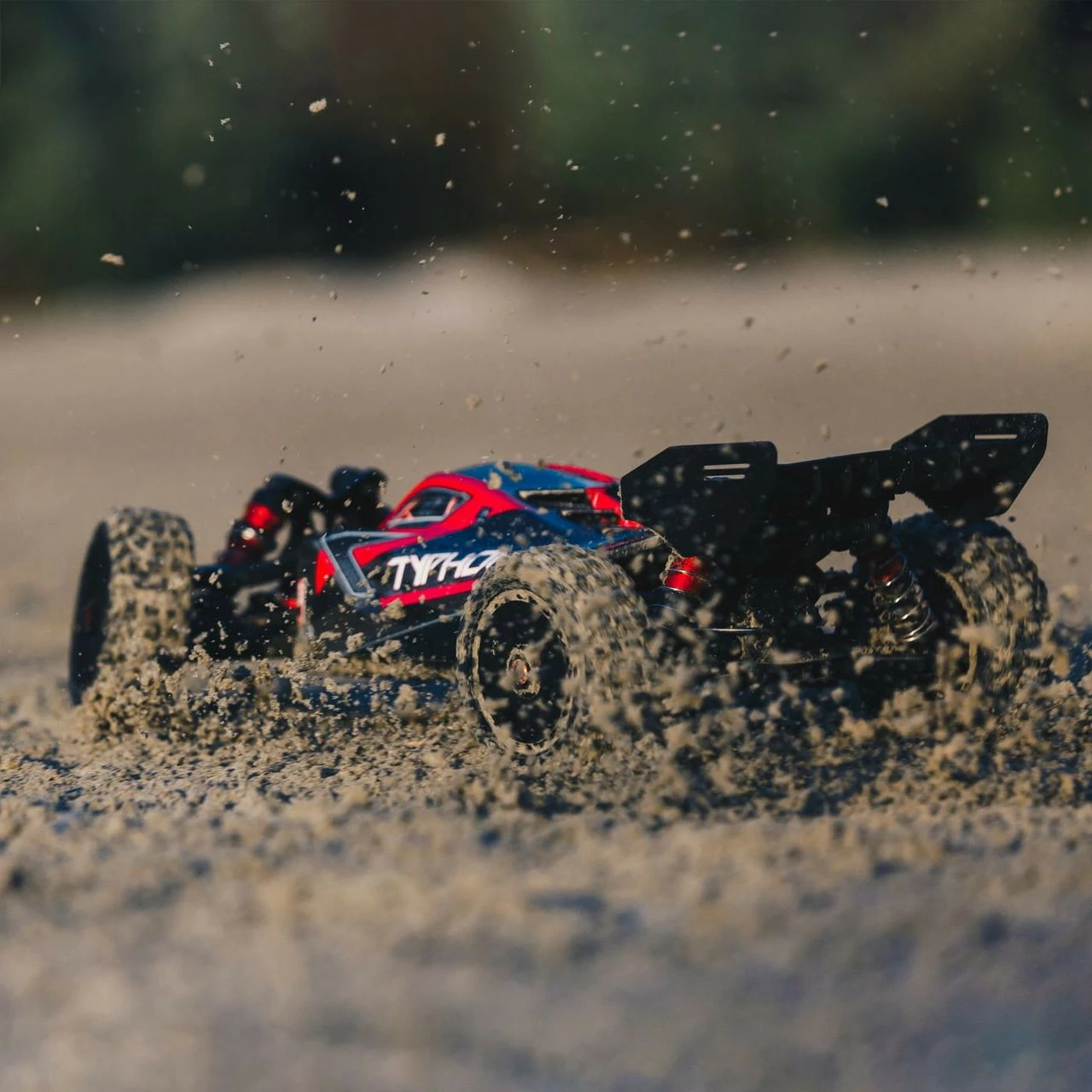

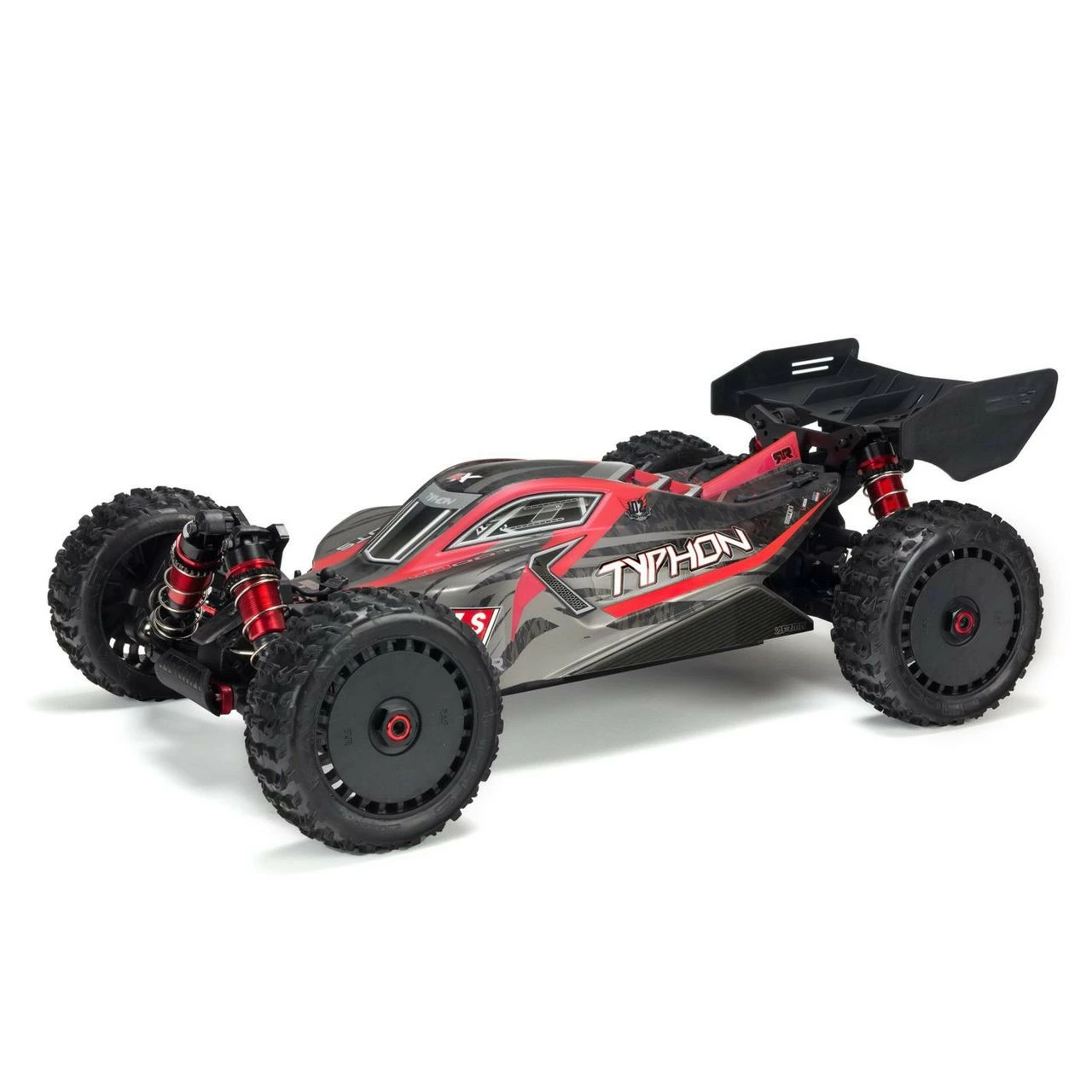

Arrma 1/8 TYPHON 6S BLX 4WD Brushless Buggy (Black)

Product Description

Arrma 1/8 TYPHON 6S BLX 4WD Brushless Buggy RTR (Black)

Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA® TYPHON™ 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum™ 3-channel radio system and Firma™ brushless electronics, it’s all set for fast action on all terrain, in all conditions.

ARRMA® engineers have updated the TYPHON™ 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version’s ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you’re a new driver, you’ll be able to set throttle limits at 50% or 75% until you’re ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You’ll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

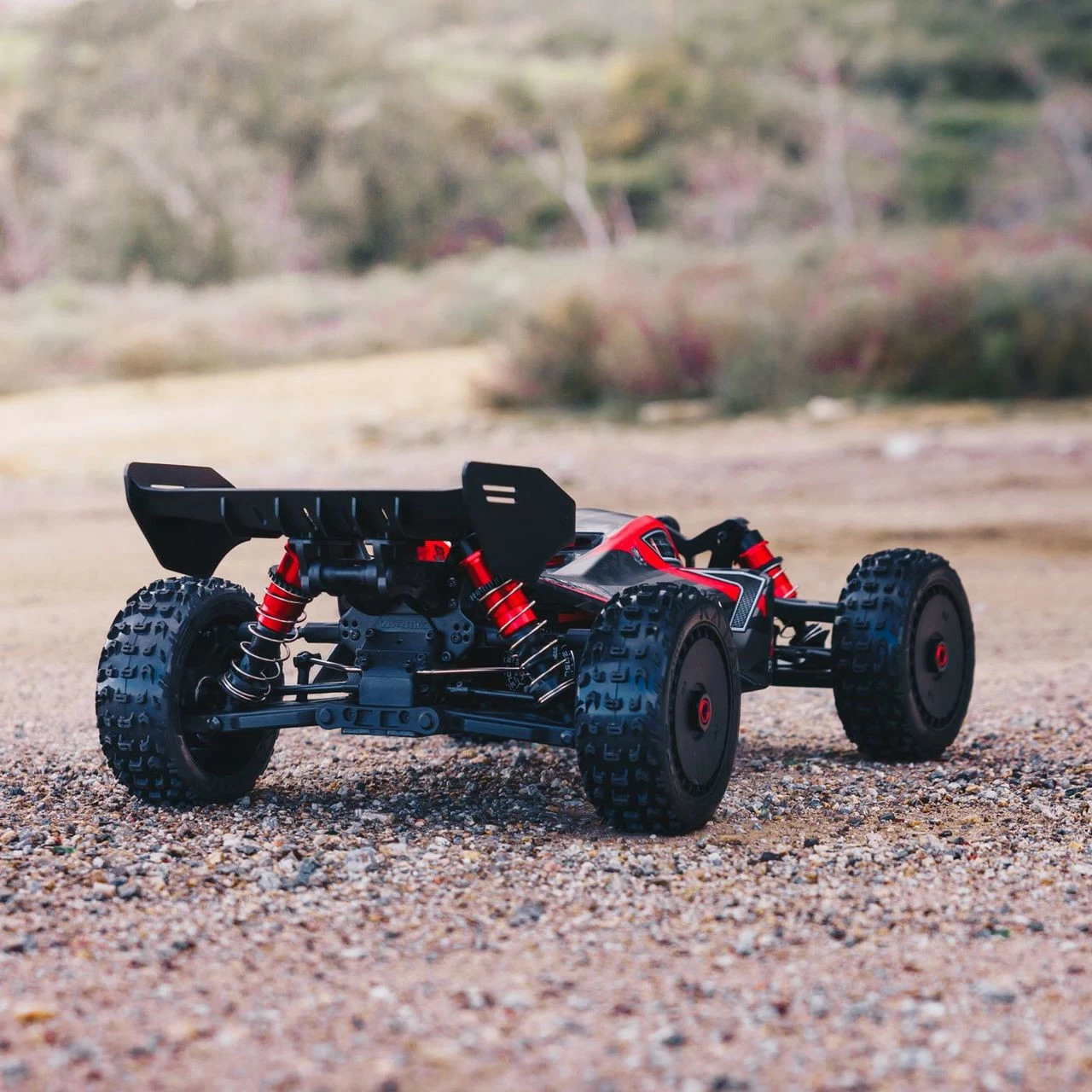

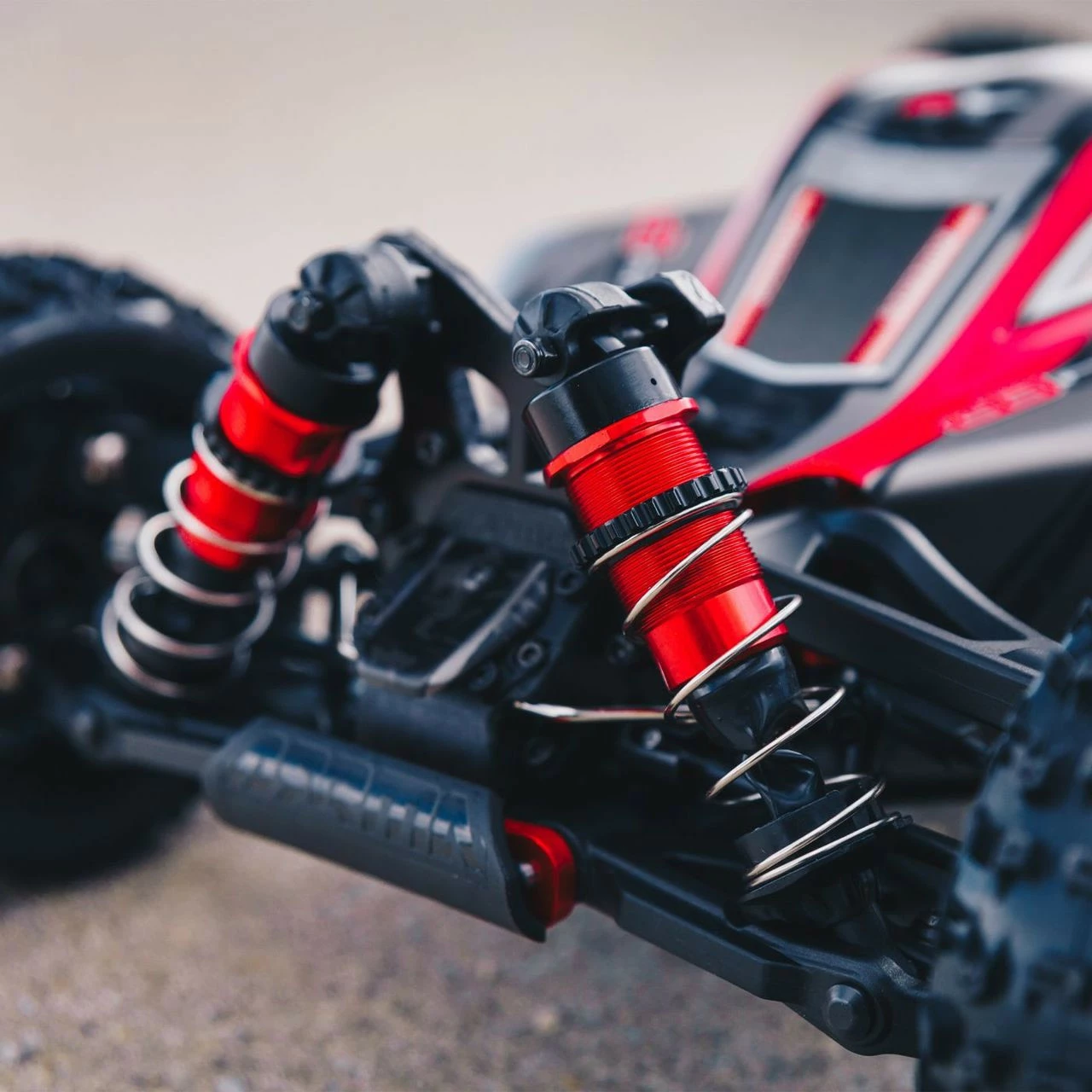

The TYPHON™ 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.

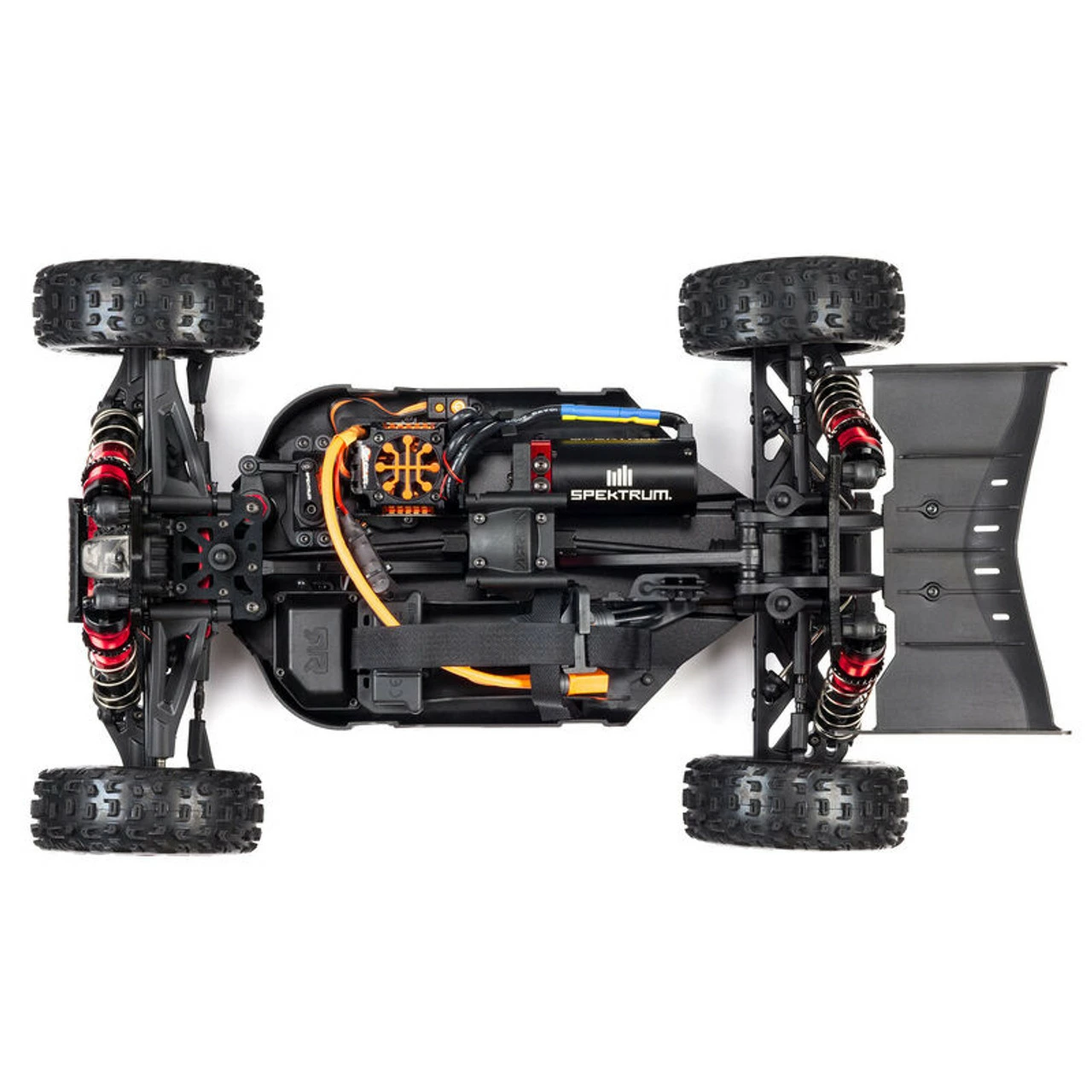

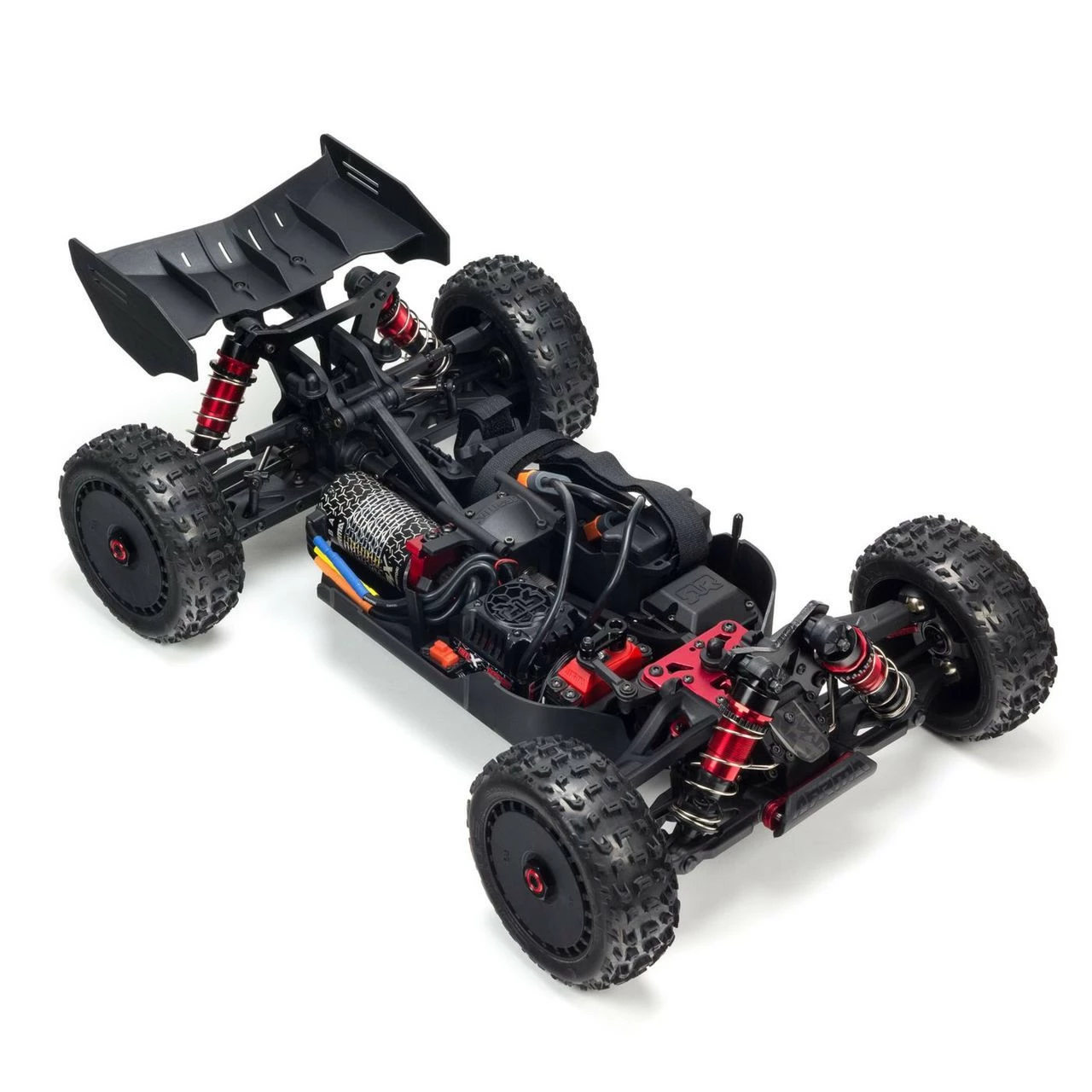

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened, anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A “never loose” aluminum steering servo saver and “never pop” ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.

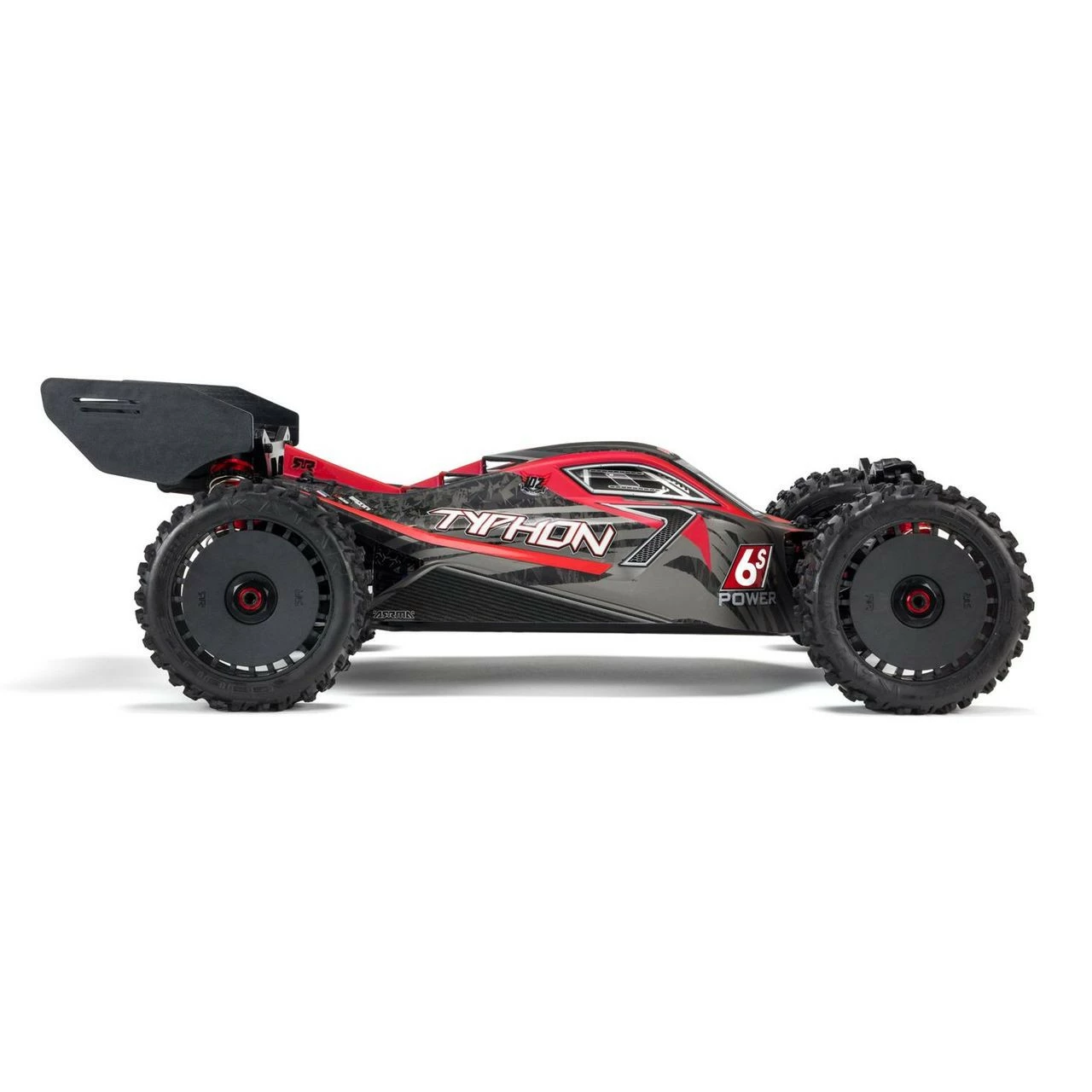

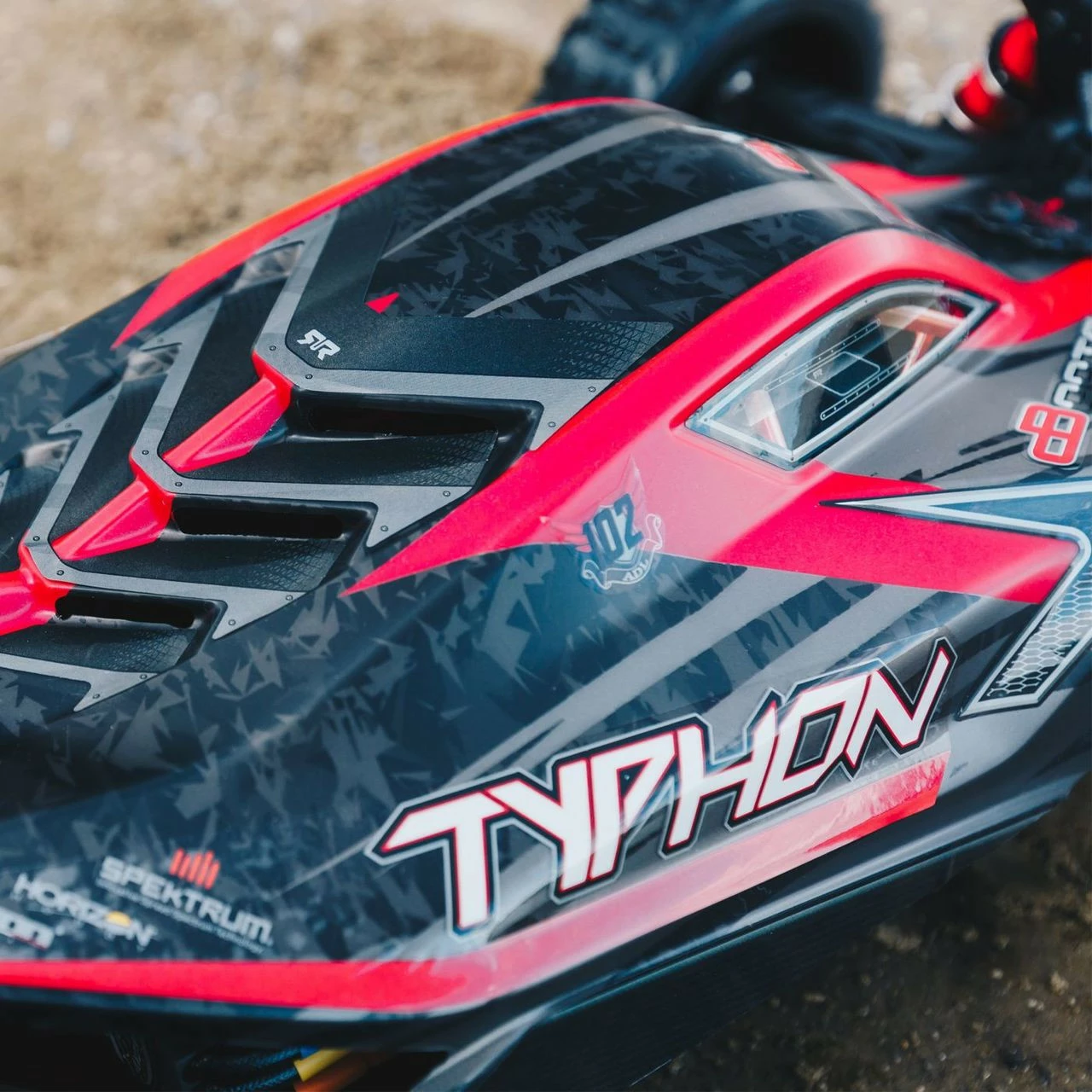

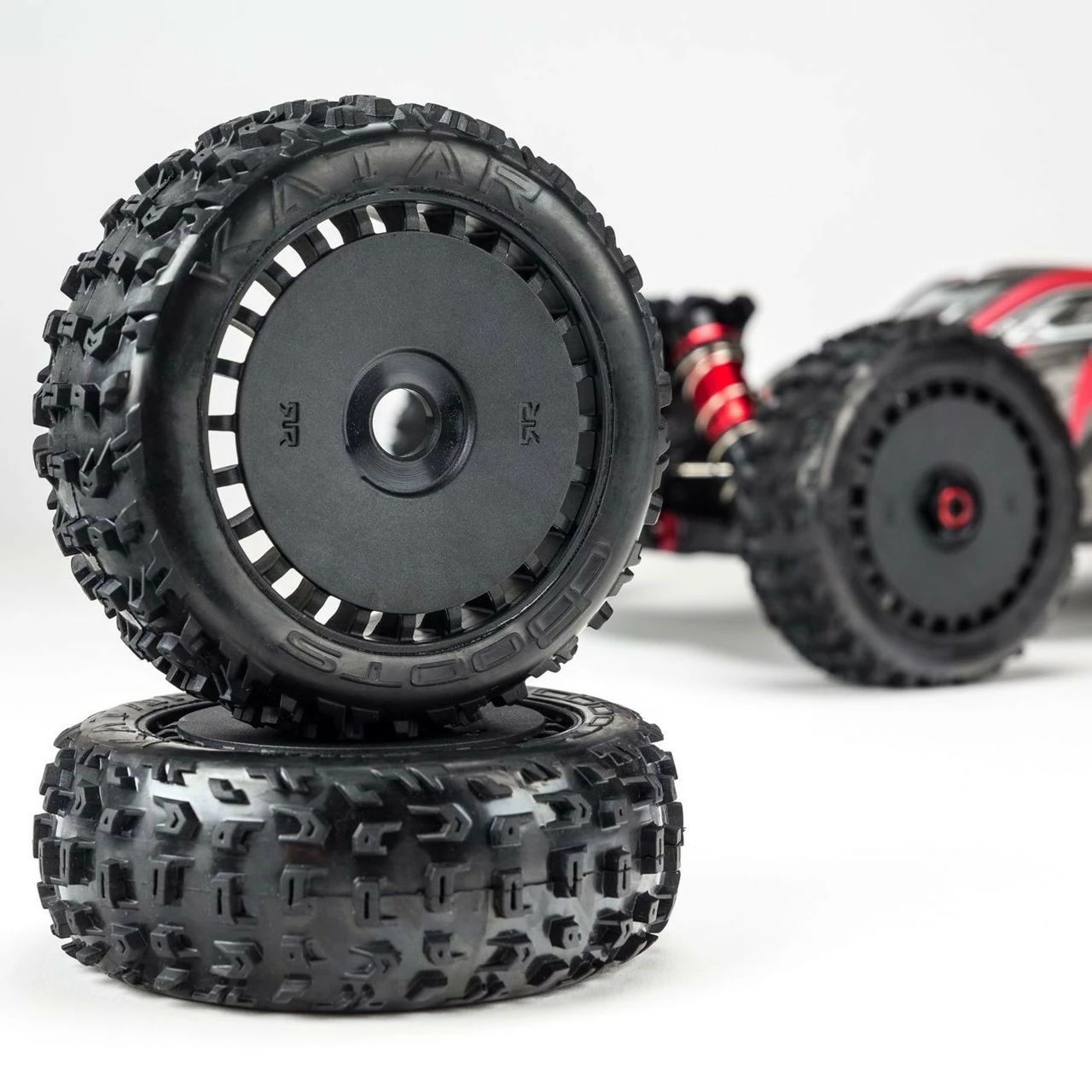

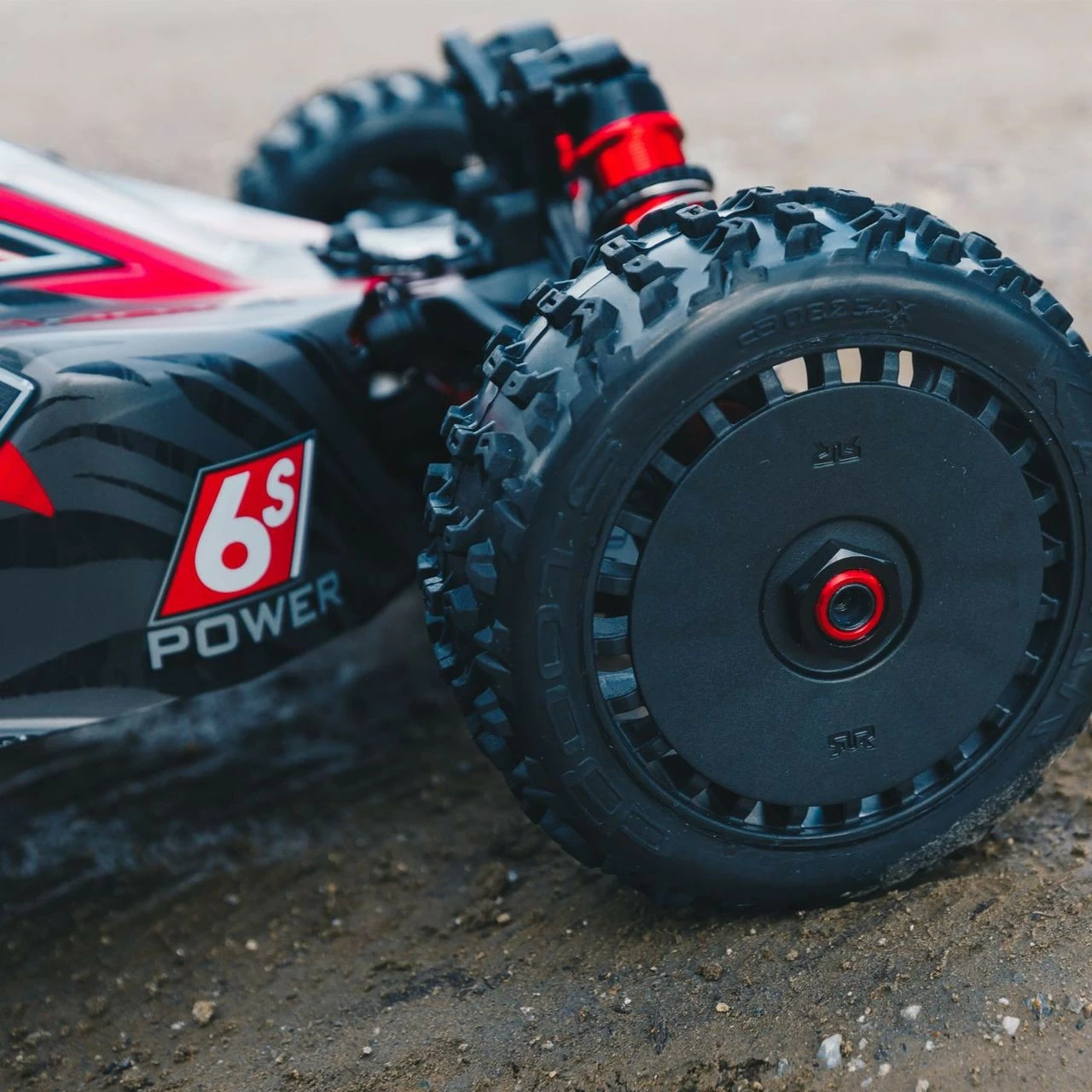

The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots® KATAR™ tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.

Features at a Glance:

*For details on waterproof standards, please refer to the product instruction manual

In-Depth Features:

Updated Chassis Design:
Wider rear section and 3D form introduced in key areas to greatly improve strength.

Safe-D First:
Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup screw.

Front Pivot Ball Suspension:
For precise handling at top speeds.

Quick Maintenance:
4 bolt center diff removal for easy access.

Spektrum Smart Technology Included:

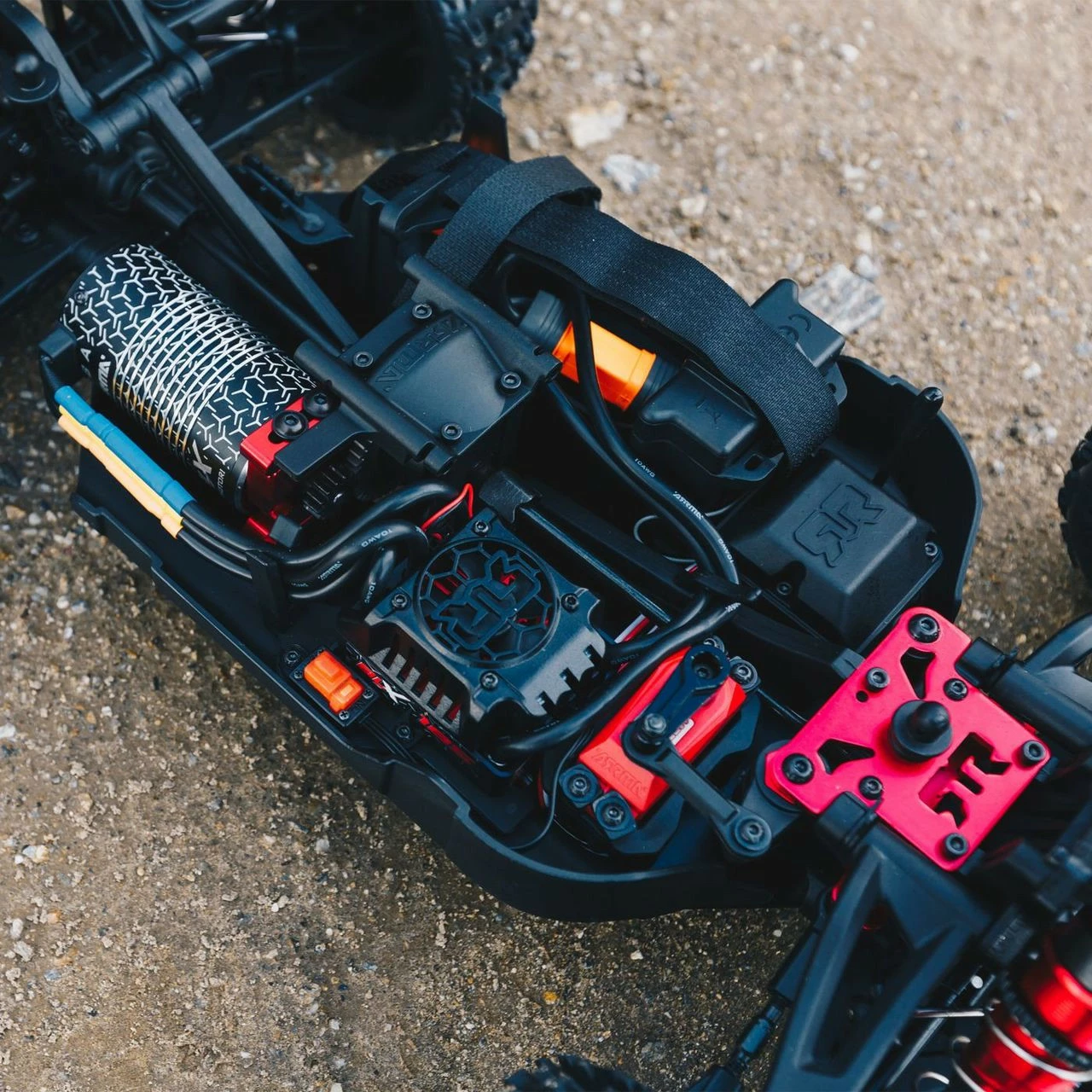

FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor.

Go Large:
Large volume waterproof receiver box.

Rubber Shielded Bearings:
Longer life, less maintenance.

Optional Speed Pinion Included:
Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

Firma 150A SMART Brushless ESC:

• Waterproof* and dustproof design
• 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
• Spektrum® SMART Technology
• Fitted with reliable IC5® connectors (EC5™ compatible)
• Integrated fan for reduced heat during extreme running
• High quality 10awg wires
• Low voltage cut off and thermal overload protection
• User programmable punch, brake, BEC, reverse speed and motor timing settings

*For details on waterproof standards, please refer to the product instruction manual

Firma 4074 2050Kv Brushless Motor:

• 2050Kv 4074 size 6S brushless motor
• Beautifully etched aluminum can
• 4-pole construction for smooth and consistent power
• 4mm gold bullet connectors for reliable and efficient connection
• Black anodized aluminum motor can for increased heat dissipation
• Super strong 5mm shaft
• Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

Spektrum SLT3 Radio:

• Superb SLT response rate
• 50% and 75% throttle limited switch – great for beginners
• Steering & throttle rate & trim adjustments with throttle and steering reversing
• Foam steering wheel grip
• Compatible with Tactic Receivers

Spektrum SR315 Receiver:

• Dual Protocol – Compatible with SLT and DSMR® 2.4GHz protocol transmitters
• Fast reponse rate and outstanding range
• No tool binding and protocol switching
• SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
• 3-Channels

Spektrum SPMS652 Digital Servo:

• All Steel Gears
• Waterproof*
• 19.08kg-cm/265oz-in Torque @7.4V
• 32% More Torque & 5% Faster than ADS-15M Servo

*For details on waterproof standards, please refer to the product instruction manual

Specifications:
Approximate Assembly Time: No assembly required
Ball Bearings: Full set
Battery Sold: Separately
Body: Painted, decaled and trimmed
Brakes: User programmable
Charger: Sold Separately
Chassis: 0.12″ (3mm) 6061-T6 aluminum
Completion Level: Ready-To-Run
Differential: Three, gear type
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 10.31
Front Shock Spring Rate: 75.5gf/mm
Front Track: 12.2″ (310mm)
Power Type: Electric
Gear Pitch: 1.0MOD
Internal Gear Ratio: 3.3
Motor Size: 4074
Motor Type: Brushless – Sensorless
Pinion: 16T
Product Height: 7.48″ (190 mm)
Product Length: 20.08″ (510 mm)
Product Weight: 7.52lbs (3.42kg)
Product Width: 12.22″ (310 mm)
Radio: Included
Rear Shock Spring Rate: 56.6gf/mm
Rear Track: 12.2″ (310mm)
Scale: 1/8
Servos: Included
Shock Type: Aluminum body oil-filled adjustable
Speed Control: Included
Spur Gear: 50T
Suspension: Independent
Tire Tread: dBoots KATAR B
Tire Type: Multi-surface
Vehicle Type: Buggy
Water-Resistant: Yes
Wheelbase: 12.91″ (328mm)
Wheel Hex Size: 17mm
Wheel Type: 1/8 scale Buggy
Wheel Width: 1.7″ (44mm)
